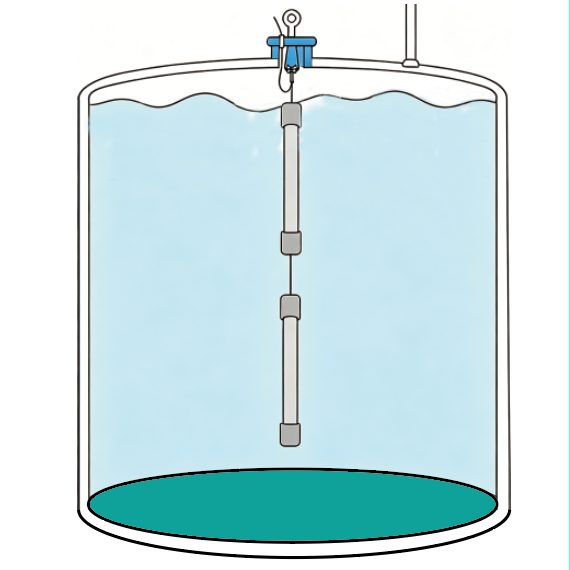

The Hanging Aluminum Anode is a hanging-type sacrificial anode cast from Al-Zn-In (Aluminum-Zinc-Indium) series aluminum alloy. Designed for internal cathodic protection of boilers, heat exchangers, seawater storage tanks, and salt-containing cooling water equipment, the anode protects carbon steel substrates from corrosion by preferentially consuming itself through electrochemical corrosion. The anode is secured via a 4” 150# hanging assembly.
KEY FEATURES
- High Efficiency
- Easy Installation & Replacement
- Flexible Connection Option
- Scalable Protection
- Customizable Sizing
SPECIFICATIONS
- Hanging Assembly: 4-inch 150# design for suspending the anode
- Connection Options: Victaulic or flanged connections available
- Assembly Configurations: Single, dual, or triple hanging anode assemblies available
- Steel Core: Plated steel core
- Lead Wire: Typical 3meters length,1×4mm2,insulated copper wire, solder connected
- Open Circuit Potential:-1.10 to -1.18 V (vs. SCE,seawater)
- Actual Capacitance:≥2500A.h/kg
- Current Efficiency:≥85%
- Chemical Composition(wt.%)：
- Iron (Fe)................................ 0.09 max
- Silicon (Si) ............................ 0.12 max
- Copper (Cu).......................... 0.003 max
- Zinc (Zn) .............................. 2.50-5.75
- Indium (In) ........................... 0.015-0.040
- Cadmium (Cd) ..................... 0.002 max
- Aluminum (Al) ...................... remainder
APPLICATIONS
- Boilers: Internal cathodic protection of boiler water chambers and drums
- Heat Exchangers: Protection of carbon steel tube sheets, channels, and end bells
- Seawater Storage Tanks: Corrosion prevention in marine environment storage systems
- Salt-Containing Cooling Water Equipment: Protection against chloride-induced corrosion in cooling systems
