MMO Mesh Ribbon Anode

MMO titanium mesh ribbon anodes are a highly effective solution for cathodic protection,designed to enhance the longevity and durability of metal structures in various environments especially suitable for protecting the steel rebar in concrete environment.

Product Name SKU Quote Preview
Product Downloads
MMO Mesh Ribbon Anode 1-5

Product Inquiry

Product:
Model:

MMO titanium mesh ribbon anodes are a highly effective solution for cathodic protection,designed to enhance the longevity and durability of metal structures in various environments especially suitable for protecting the steel rebar in concrete environment. MMO ribbons are made of a base metal, typically titanium Grade1 or 2, coated with a layer of mixed metal oxides (IrO2/Ta2O5). Their electrochemical property are fully conform to NACE TM0108 standard.

KEY FEATURES

  • Durability and Longevity
  • High and Stable Current Output
  • Min. Maintenance and Reliability
  • High Efficiency
  • Various Applications

SPECIFICATIONS

  • Substrate: Titanium - ASTM B265 Grade 1
  • Coating: IrO2/Ta2O5
  • Dimension: 10mm/13mm/19mm/25mm ,0.012m²/0.015m²/0.022m²/0.029m²
  • Thickness: 0.6mm edge, 1.3mm expanded
  • Diamond Size: 2.5mm × 4.6mm
  • Current Output: 110mA/m², 100 years life
  • Coil Length: 76m/coil
  • Coil Weight: 10mm-1.2Kgs,13mm-1.6Kgs,19mm-2.3Kgs,25mm-3.0Kgs

APPLICATIONS

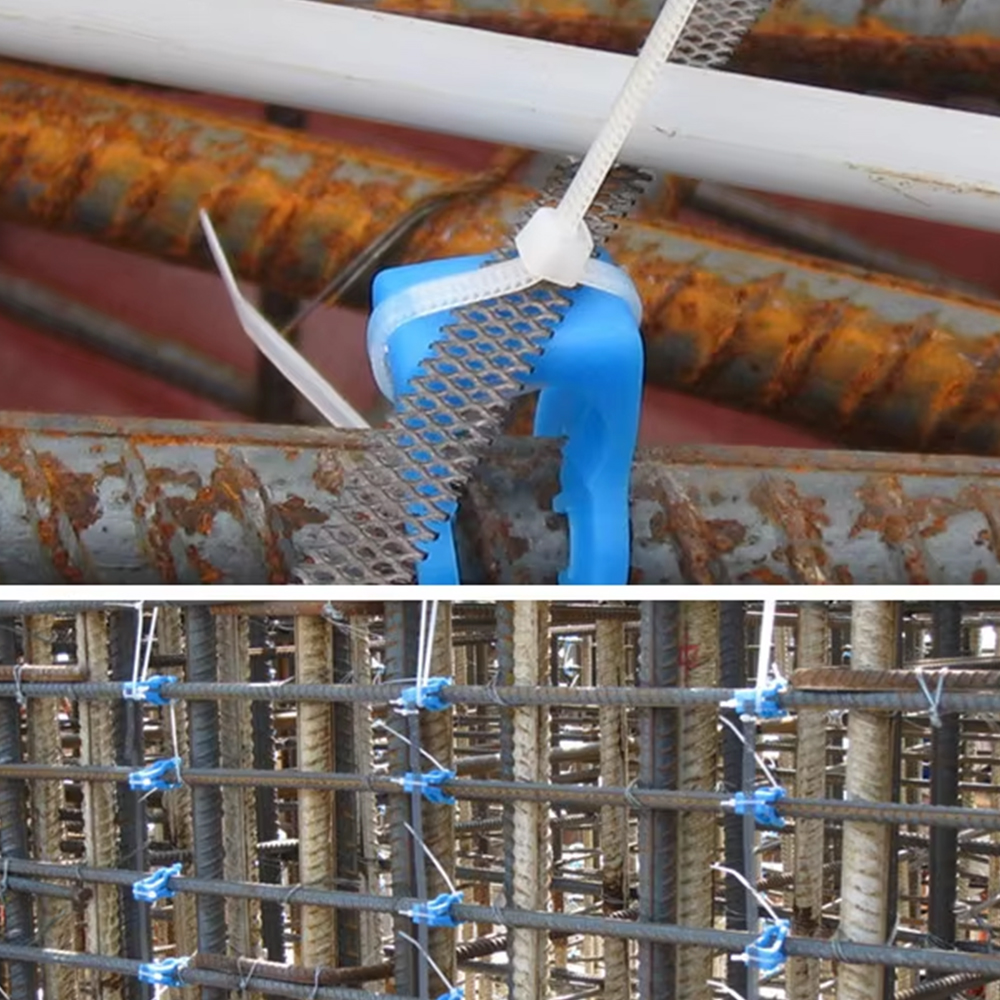

  • Reinforced Concrete Structures
  • Harbors and Jetty
  • Offshore Platform
  • Water Tank
  • Power Plant
Dimensions 10mm/13mm/19mm/25mm×76m
Weight 10mm-1.2Kgs,13mm-1.6Kgs,19mm-2.3Kgs,25mm-3.0Kgs
Current Output 110mA/m2
Service life 100years
Substrate Titanium - ASTM B265 Grade 1 or Grade 2
MMO Coating IrO2/Ta2O5
