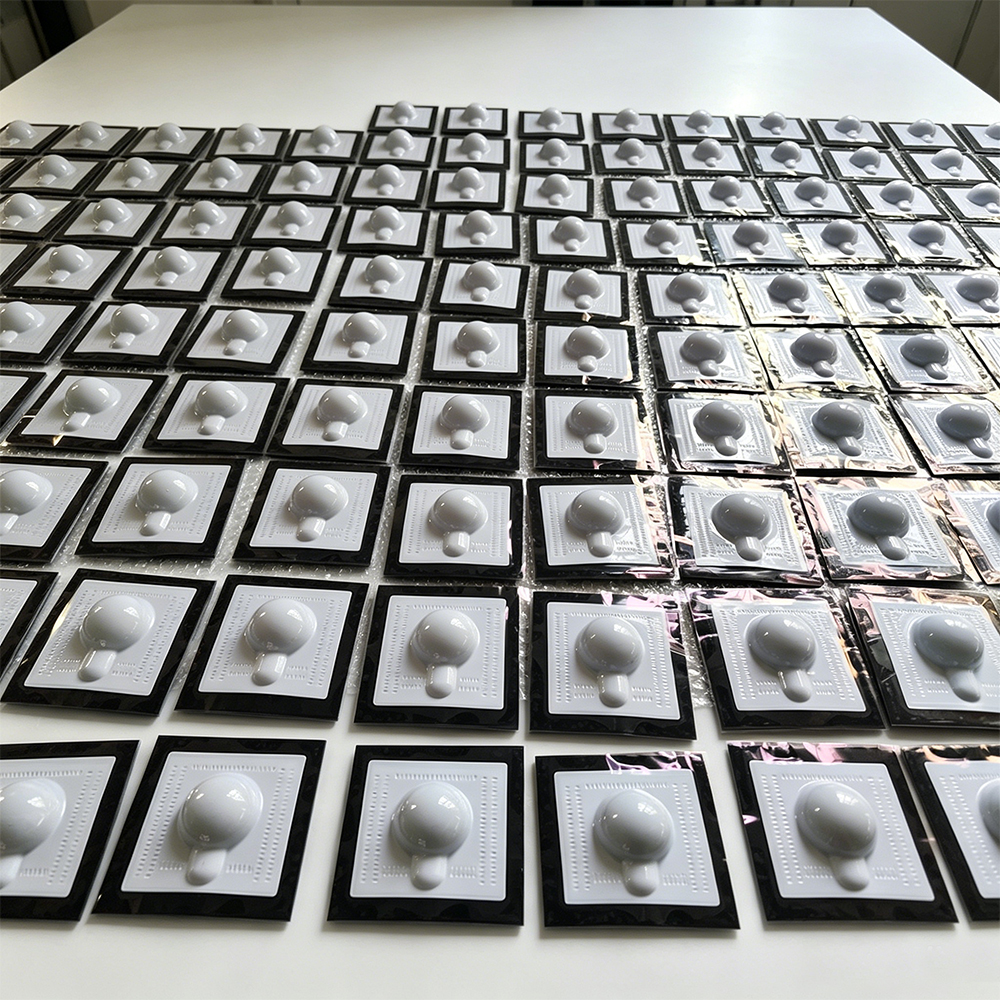

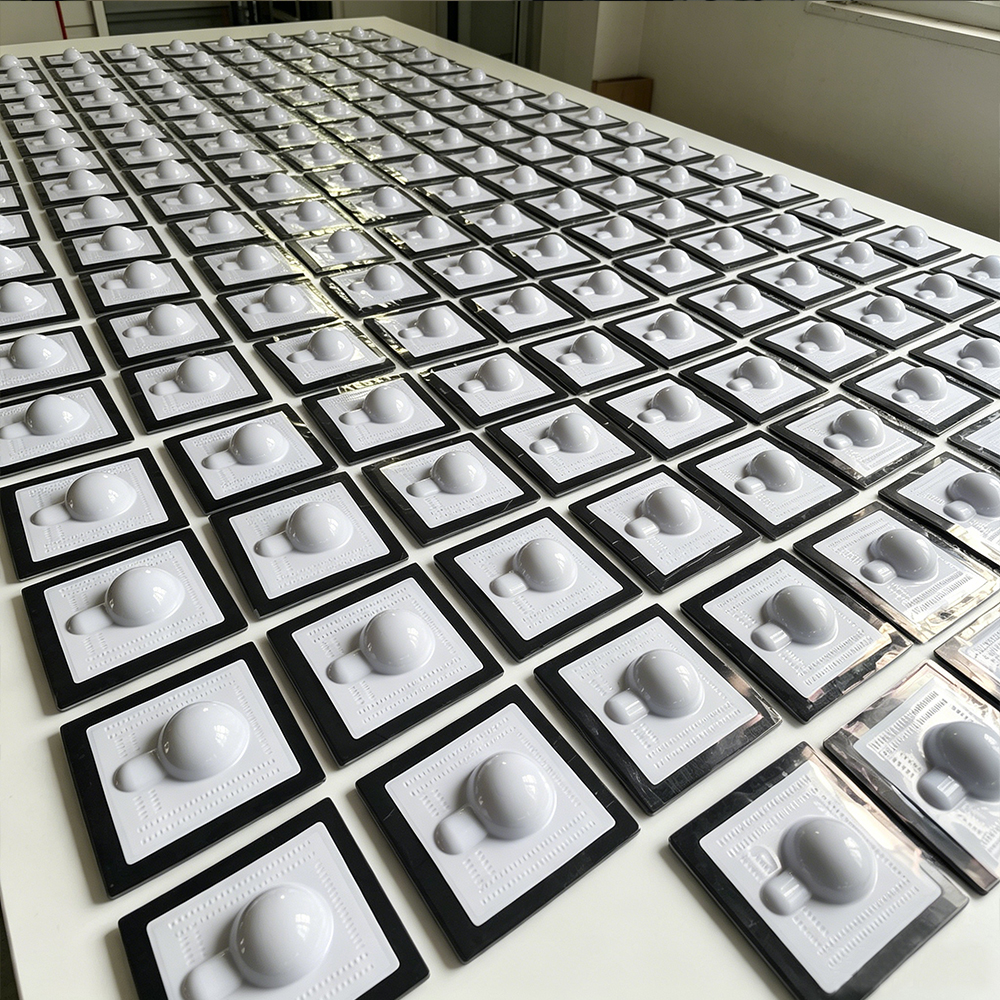

Plastic Repair Patch(Handy Cap)

Plastic repair patch can provide quick, field-applied corrosion protection to anode and test lead wire welds on metal pipe and tanks. This economical product is ideal for use in limited access applications. Our plastic repair patch integrated with sticky primer layer to make the primer free when using it onsite.

KEY FEATURES

• Perfect for applications requiring precise access points
• Domes and tunnels ensure convenient entry
• Tape coat Gray Adhesive removes the need for liquid primer
• Elastomeric compound surrounds the weld profile securely

SPECIFICATIONS

• Dimension: Overall: 4”×4”
• Plastic Sheet: Flame retardant material
• Plastic Dome: 2.0” diameter/ 1.0” height
• Weight: 75g
• Adhesive Thickness: 180mils
• Application Temperature: -25˚C to +60˚C
• Service Temperature: -40˚C to +70˚C
• Shelf Life: Rotate yearly
• Maximum Wire Size: 50mm²

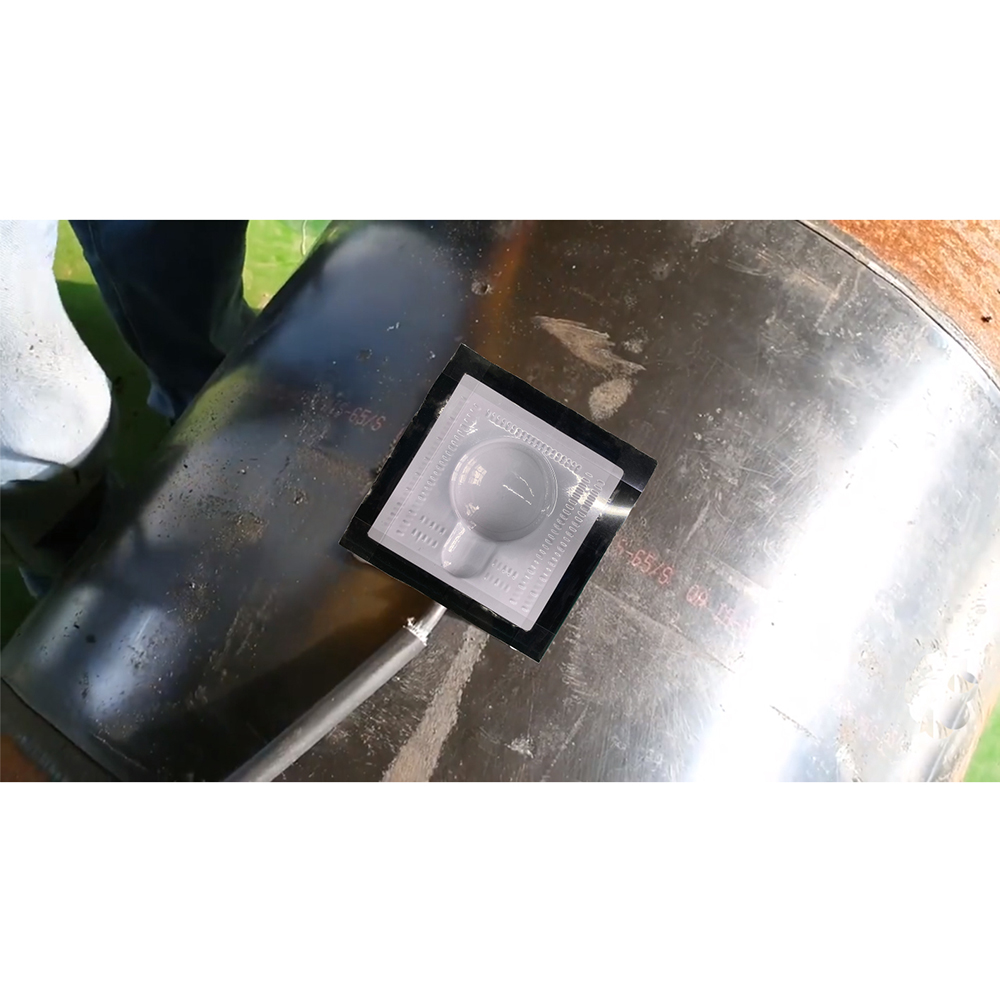

APPLICATIONS

• Clean the oil and dirty on structure
• Remove oil paper on the bottom
• Push the dome firmly to structure
• Squeeze the dome to the welding
• Push the lead wire down to Pipes
