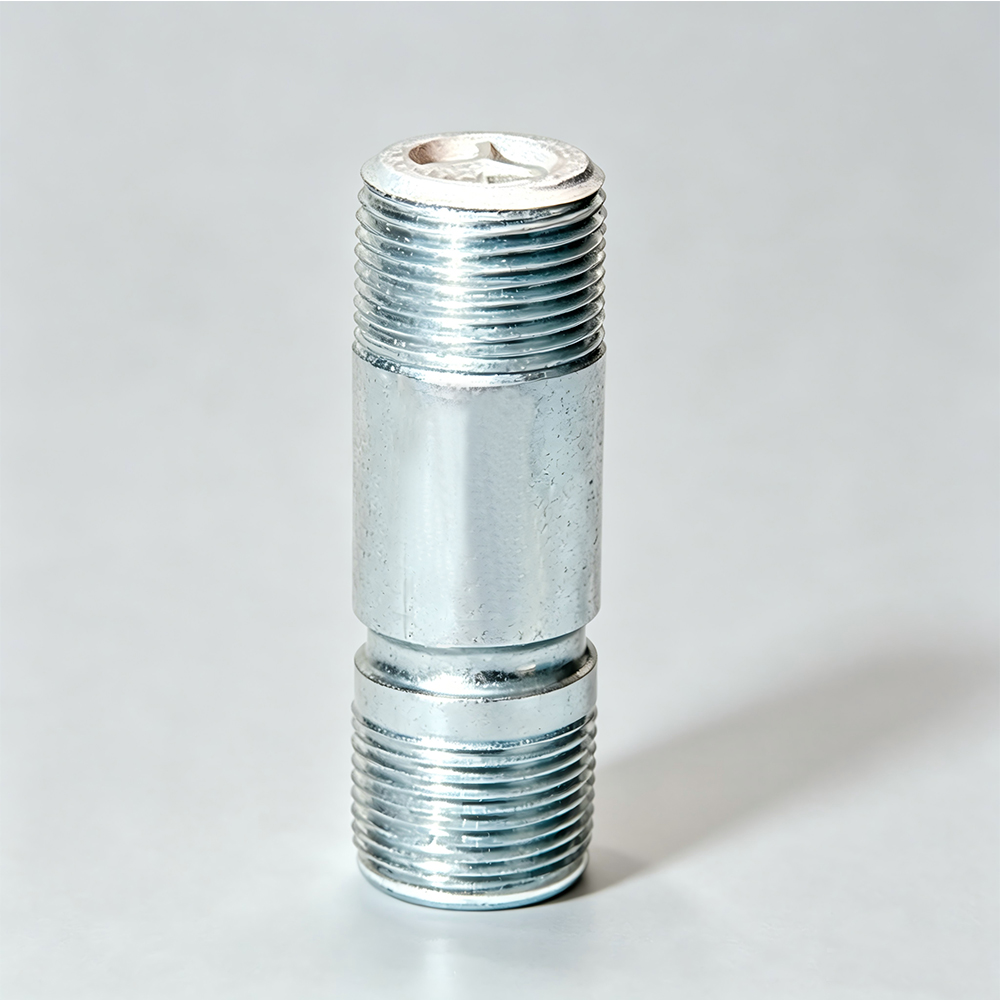

This is an integrated replacement component that combines a sacrificial anode rod and a heat trap nipple in one unit. It installs on the hot water outlet side of a storage-type water heater. The assembly consists of a magnesium (or aluminum) anode rod, a zinc-plated steel nipple body, an internal polymer liner (polypropylene or PEX), and a heat-trapping mechanism (ball or flapper type). Various anode rod lengths (24", 33", 43") are available to fit different tank heights.
KEY FEATURES
- Corrosion protection
- Energy savings
- Dielectric isolation
- Easy installation
- Code compliant
SPECIFICATIONS
- Anode Material:Magnesium / Aluminum alloy
- Nipple Body Material:Zinc-Plated Steel
- Nipple Liner Material:Polypropylene / PEX
- Heat Trap Type:Ball / Flapper / Baffle Type
- Thread Specification:3/4” NPT Male
- NPT Thread:3/4” (male × male)
- Nipple Length:2.5”-3.5”
- Anode Rod Length (options):24” / 33” / 43”
- Anode Rod Diameter:0.84”
- Total Length (including nipple):28.5”–48.44”
APPLICATIONS
- Residential storage water heaters
- Commercial water heaters
- Routine maintenance
- New construction/retrofits
