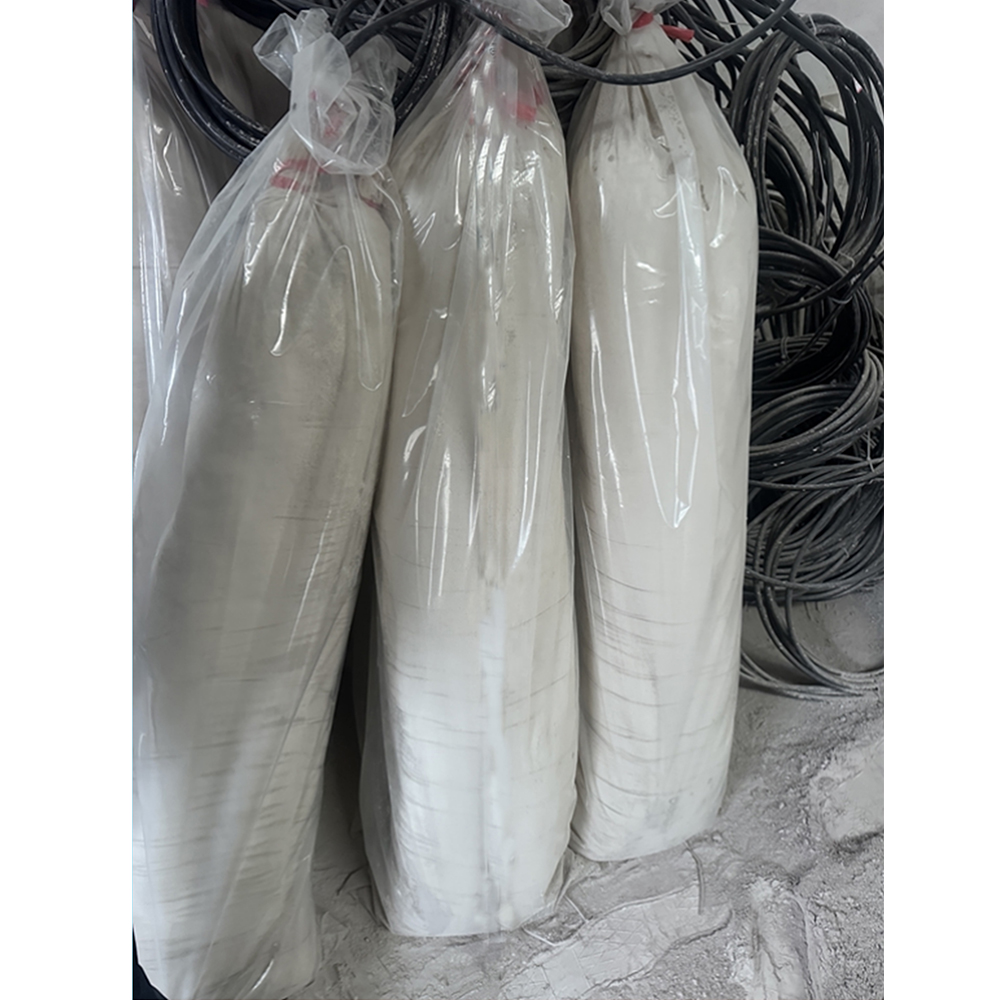

Bias Zinc Cells

Bias Zinc Cells comprises two or four parallel zinc alloy sacrificial anode rods separated by insulating spacers, encapsulated within a cotton bag pre-filled with backfill material.

Product Name	SKU	Quote	Preview
Product Downloads
Bias Zinc Cells	1042

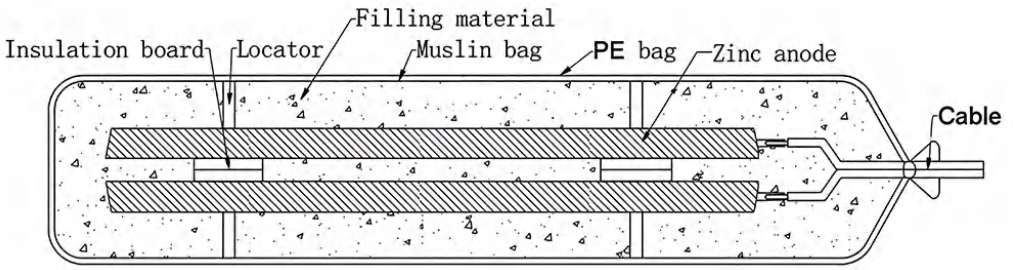

Bias Zinc Cells comprises two or four parallel zinc alloy sacrificial anode rods separated by insulating spacers, encapsulated within a cotton bag pre-filled with backfill material. Key structural features:

Anode composition: Zn-Al-Cd alloy (ASTM B418)
Insulation system: Fiber-reinforced epoxy spacers (dielectric strength >30 kV/mm)
Backfill mixture: 75% gypsum + 20% bentonite + 5% sodium sulfate (optimizes ion diffusion)

SPECIFICATIONS

Chemical Composition(%)
Executive Standard	ASTM-418-type Ⅰ	ASTM-418-type Ⅱ
Al	0.1-0.5	≤0.005
Cd	0.025-0.07	≤0.003
Fe	≤0.005	≤0.0014
Pb	≤0.006	≤0.0014
Cu	≤0.005	≤0.002
Zn	Remainder	Remainder

Electrochemical Properties
Executive Standard	ASTM-418-type Ⅰ	ASTM-418-type Ⅱ
Open Potential(-V,vs SCE)	≥1.05	≥1.10
Closed Potential(-V,vs SCE)	≥1.0	≥1.05
Actual capacitance(A·h/kg)	≥780	≥740
Current Efficiency(%)	≥95	≥90
