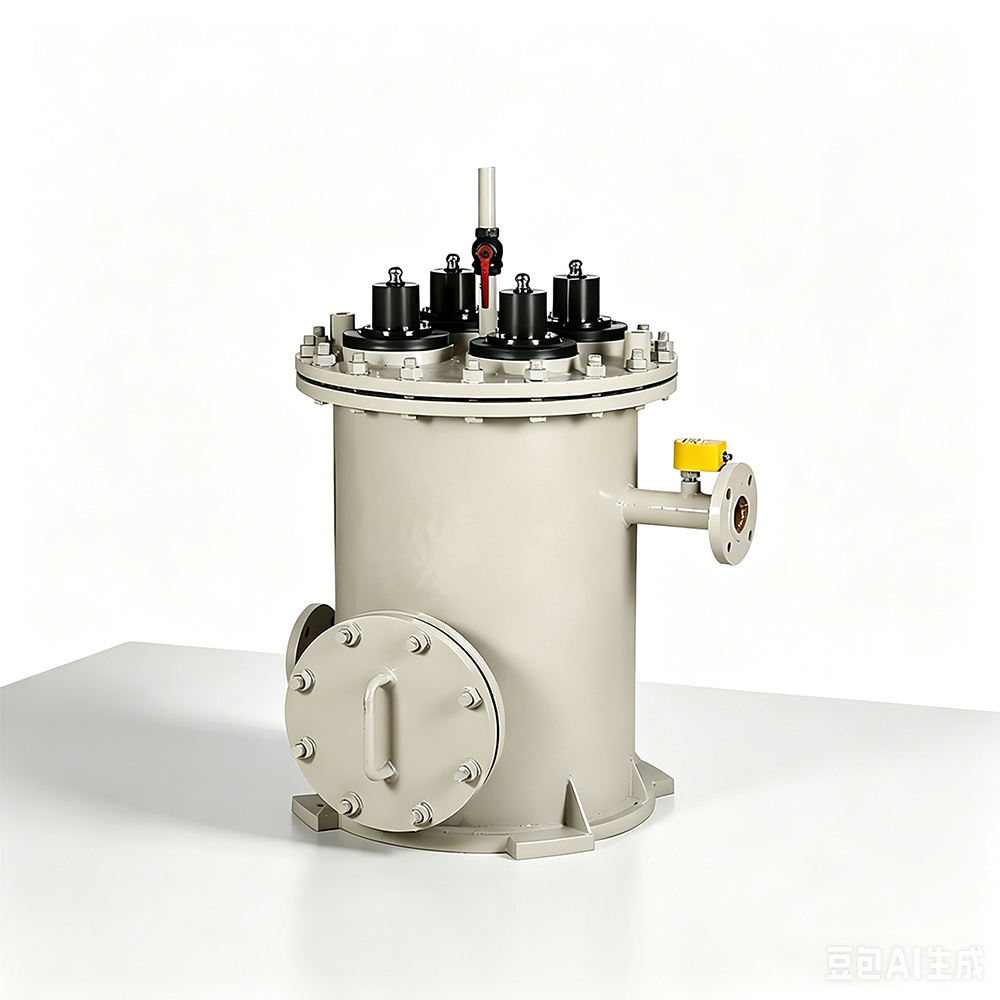

Copper/aluminum electrodes

Copper/aluminum electrodes in a ship's marine growth prevention system are key components that protect the vessel's seawater systems from marine organism attachment and corrosion. The copper electrode electrolytically releases trace copper ions (Cu²+), which effectively kill or inhibit marine organism larvae and spores. The aluminum or iron electrode electrolytically produces flocculant aluminum hydroxide or ferric hydroxide, which adheres to the pipe walls to form a protective film, serving both anti-fouling and anti-corrosion purposes. If the seawater piping material is steel, a copper/aluminum anode combination is typically selected; if the material is copper or aluminum, a copper/iron anode combination is used.

SPECIFICATIONS

• Electrode Material:Copper/Aluminum/Iron
• Product Size(mm):Φ75×350 ,Φ80×450 ,Φ120×600
• Cable:2×1.5mm²
• Flange: Carbon steel
• Copper Electrode Composition(%):Sn:≤0.002,Zn:≤0.005,Pb:≤0.005,Other:≤0.088,Cu:Remainder
• Aluminum electrode composition(%):,Si:0.7-1.3,Fe:≤0.05,Cu:≤0.1,Mn:≤0.4-1.0,Mg:≤0.6-1.2,Cr:≤0.25,Zn:≤0.2,Ti≤:0.1,Other:0.05-0.15, Al:Remainder
